Flexible and safe CUBE

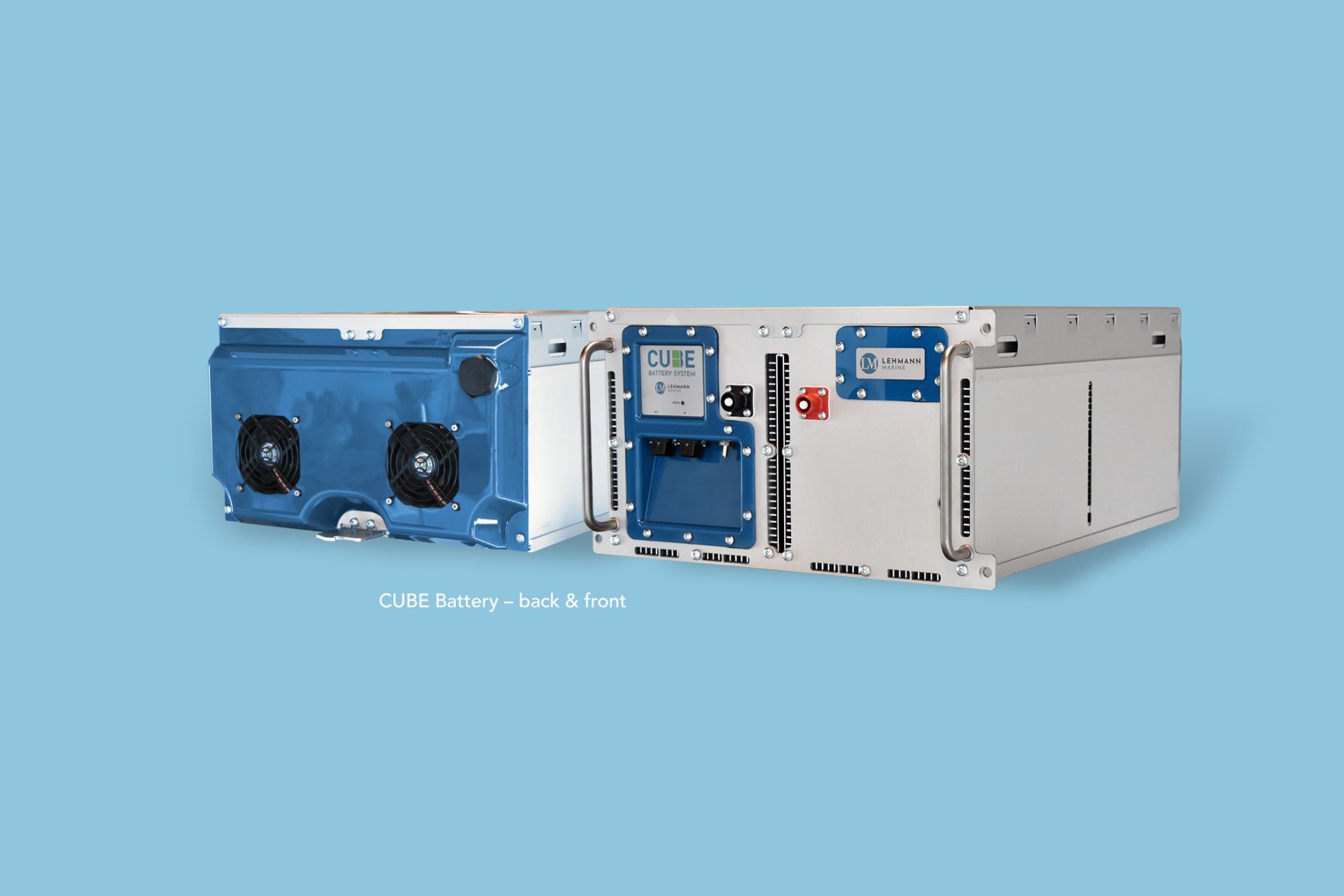

When it comes to providing sufficient power on board ships the factor space can be a tough nut to crack. A flexible stacking of battery modules can make a difference and provide the most energy density in the battery room. For that, we developed a battery system with a superior energy density that can be stacked very flexibly for optimum use of space. CUBE is a modular system of very compact design and incorporates an innovative air-cooling technology that ensures uniform cooling of all cells for the highest cycle life. CUBE is type-approved by DNV and RINA.
Scalable and safe flexibitliy
CUBE provides a modular battery design with superior energy density. Any scale of power storage is available by freely configuring modular units in strings of up to 1,000 VDC. They include an integrated Battery Management System (BMS), gas exhaust and pre-charge functionality.

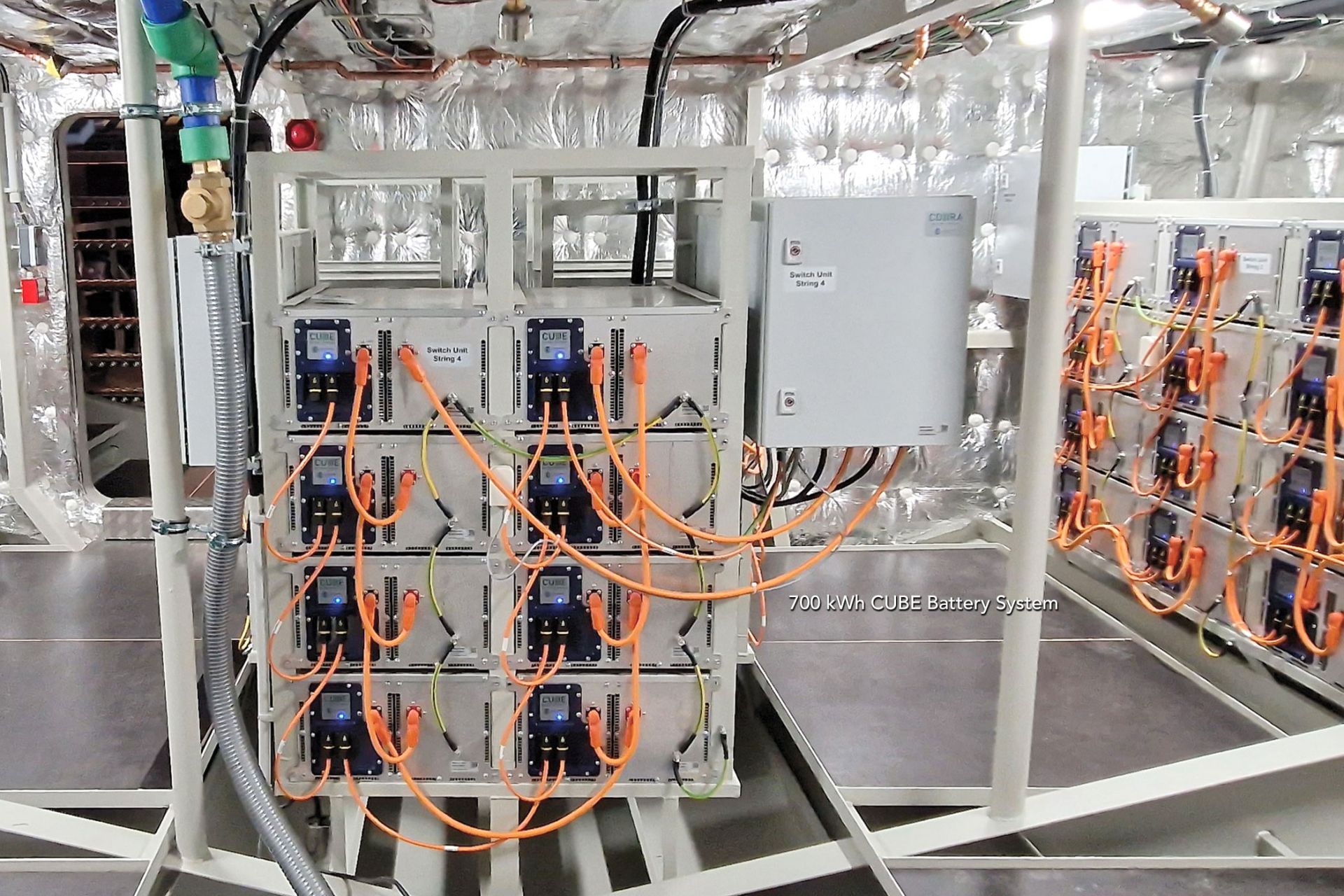

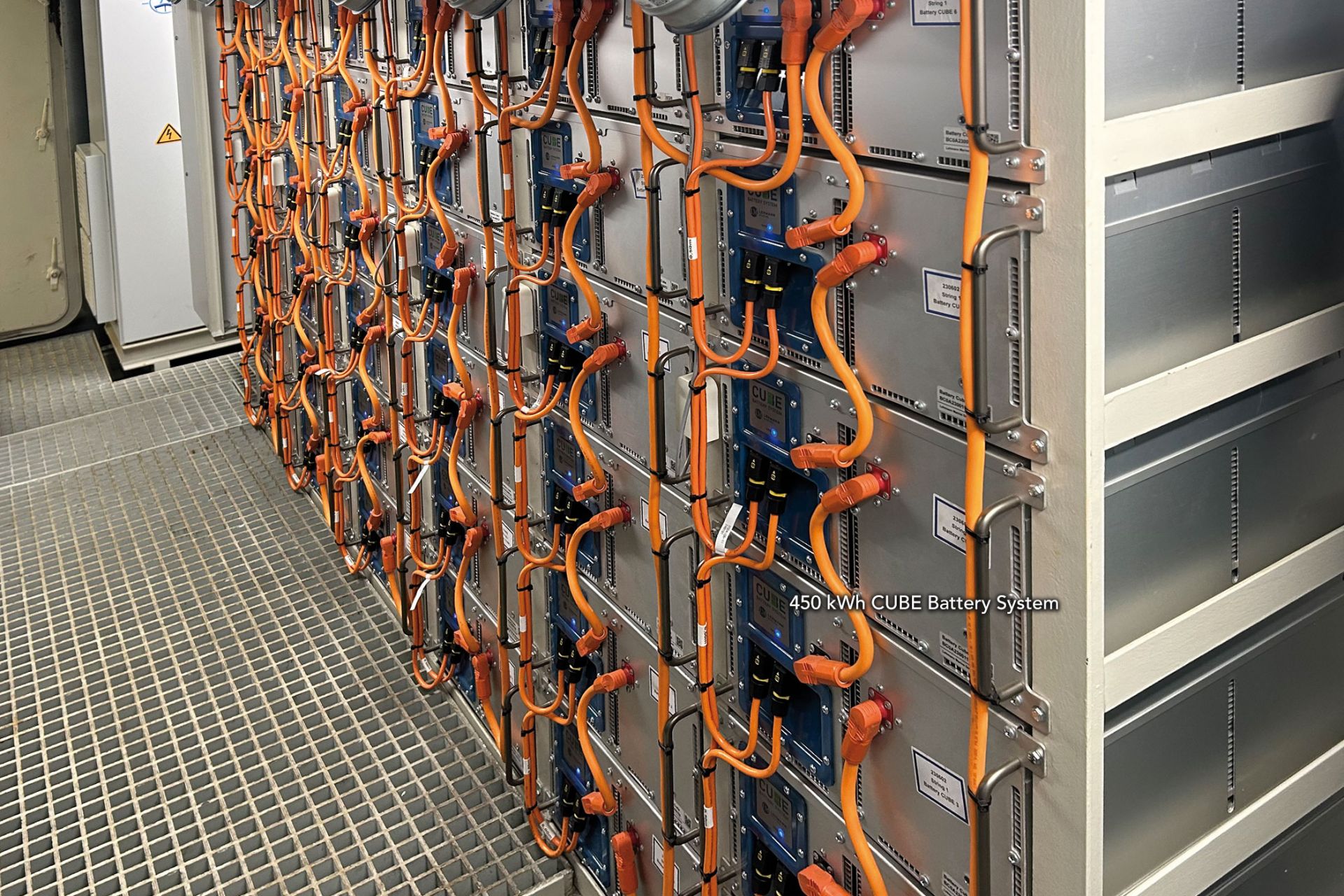

A battery cluster with up to 16 battery strings and 1 control cabinet provides a capacity of 2.2 MWh. The CUBE system is scalable from a few kWh to several MWh and allows for optimal use of battery room space.
LFP battery cells and permanent monitoring by the Battery Management System on cell, module and on string levels guarantees the highest standards for safety. LFP battery chemistry does not catch fire during thermal runaway, short-circuit or mechanical damage which makes the CUBE system a high-quality solution for the use at sea where safety is essential.

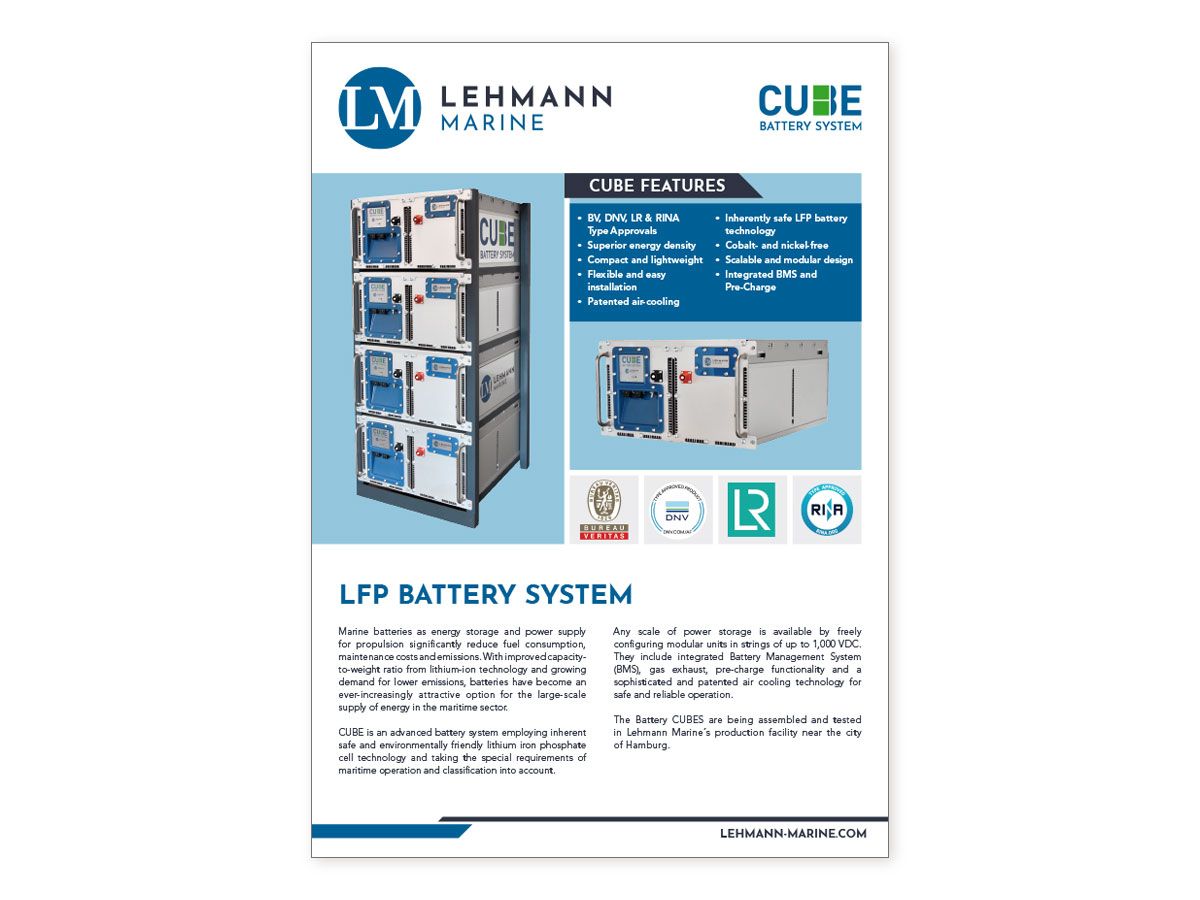

Product information
CUBE properties
- DNV and RINA Type Approvals
- Flexible stacking for maximum utilisation of the battery room
- 1 to 11 Battery CUBES per Battery String
- Up to 137,5 kWh and 1,000 VDC per Battery String
- Battery Cluster with up to 16 Battery Strings and 2.2 MWh
- Innovative air-cooling technology ensures uniform cooling of all cells for the highest cycle life
- No propagation in case of a thermal runaway on cell level and fulfilling of highest safety requirements
- Environmentally friendly LFP battery without cobalt and nickel
- Flexible Interface to Power Management System (CanBus, ModBus or others)
- Including Pre-Charge functionality
Applications:
- Electric drives
- Hybrid drives
- Peak shaving
- Hotel load
- Load levelling
- Energy storage

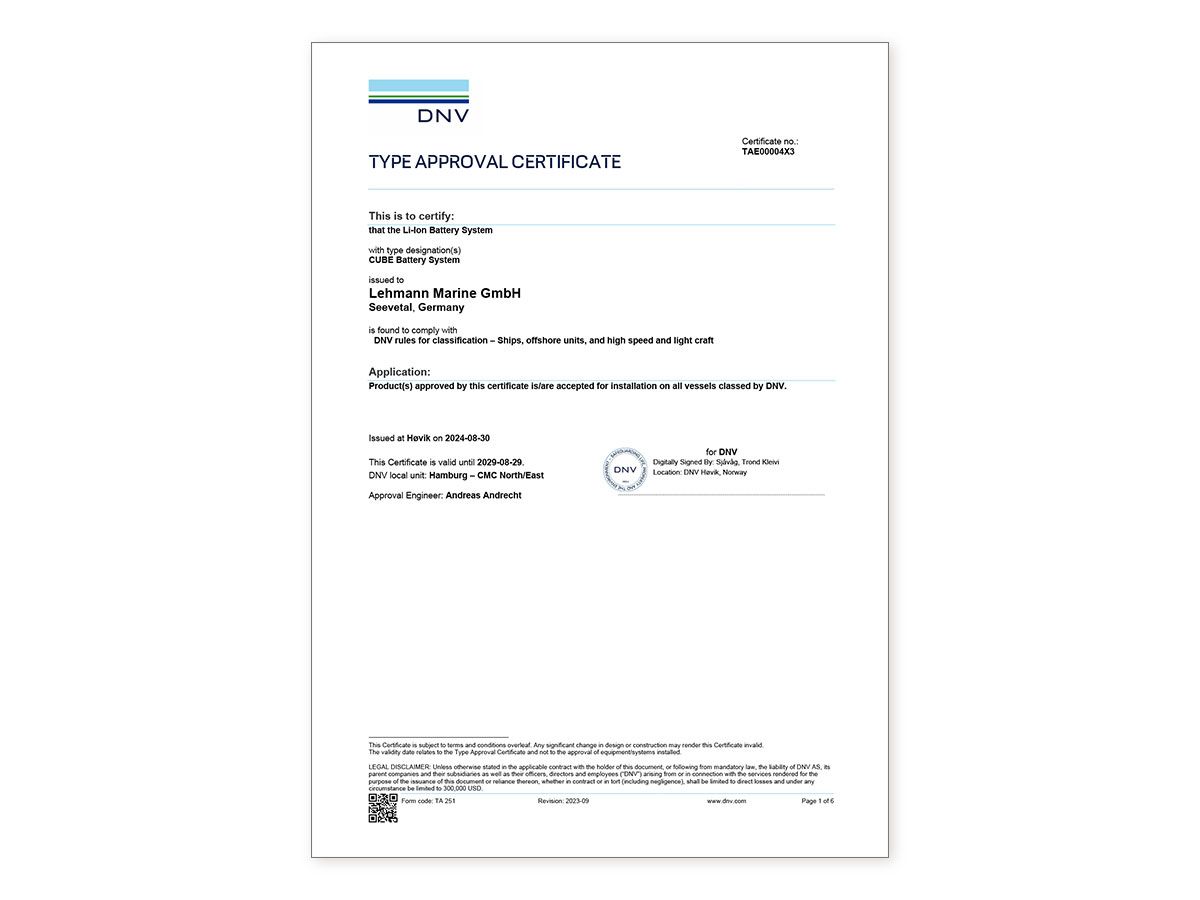

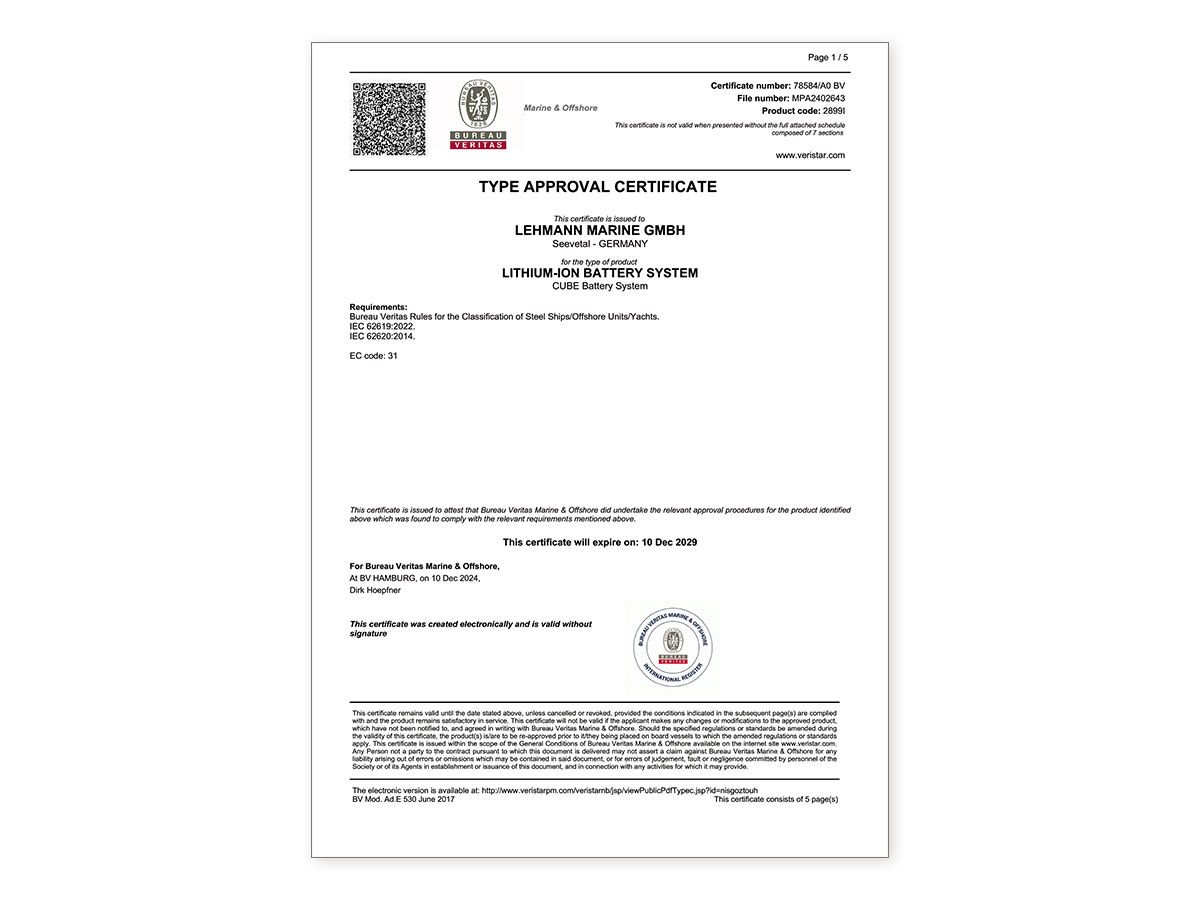

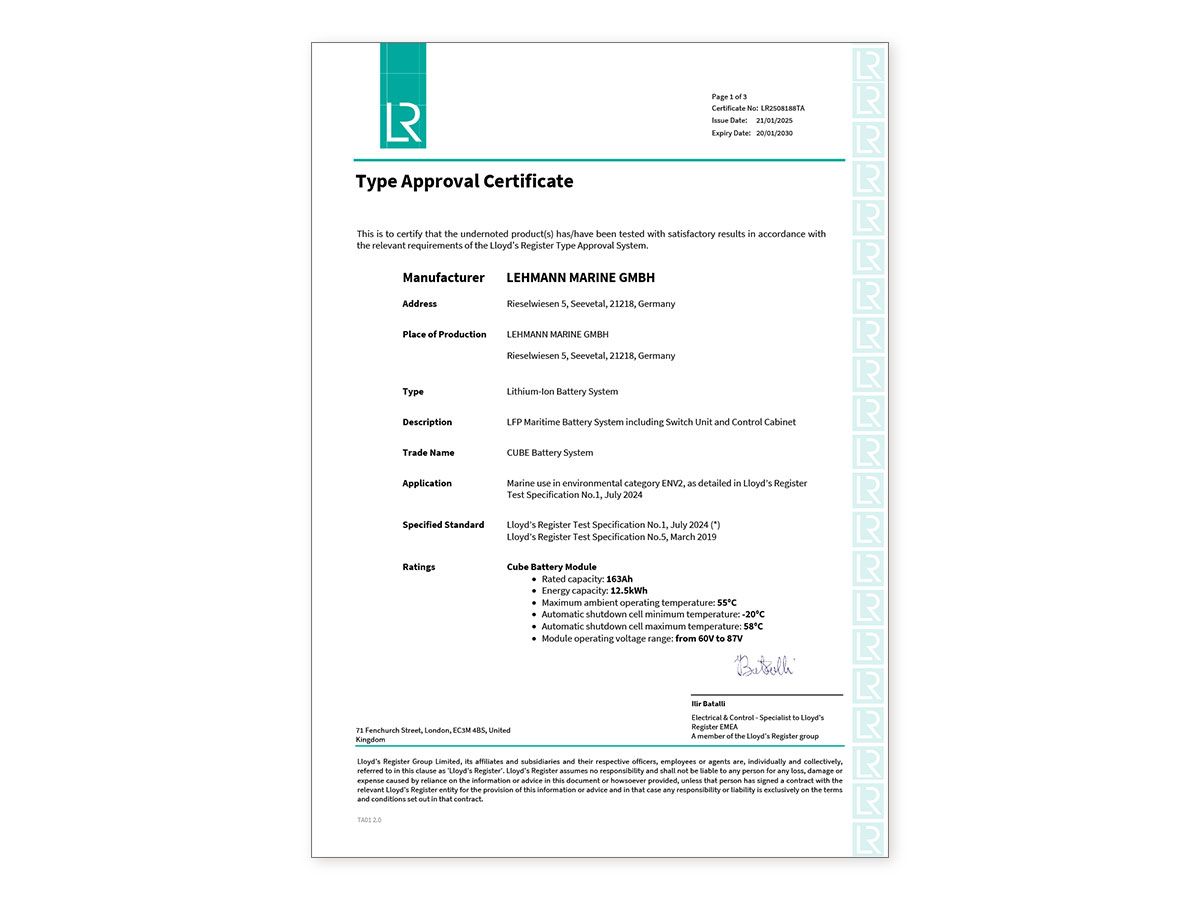

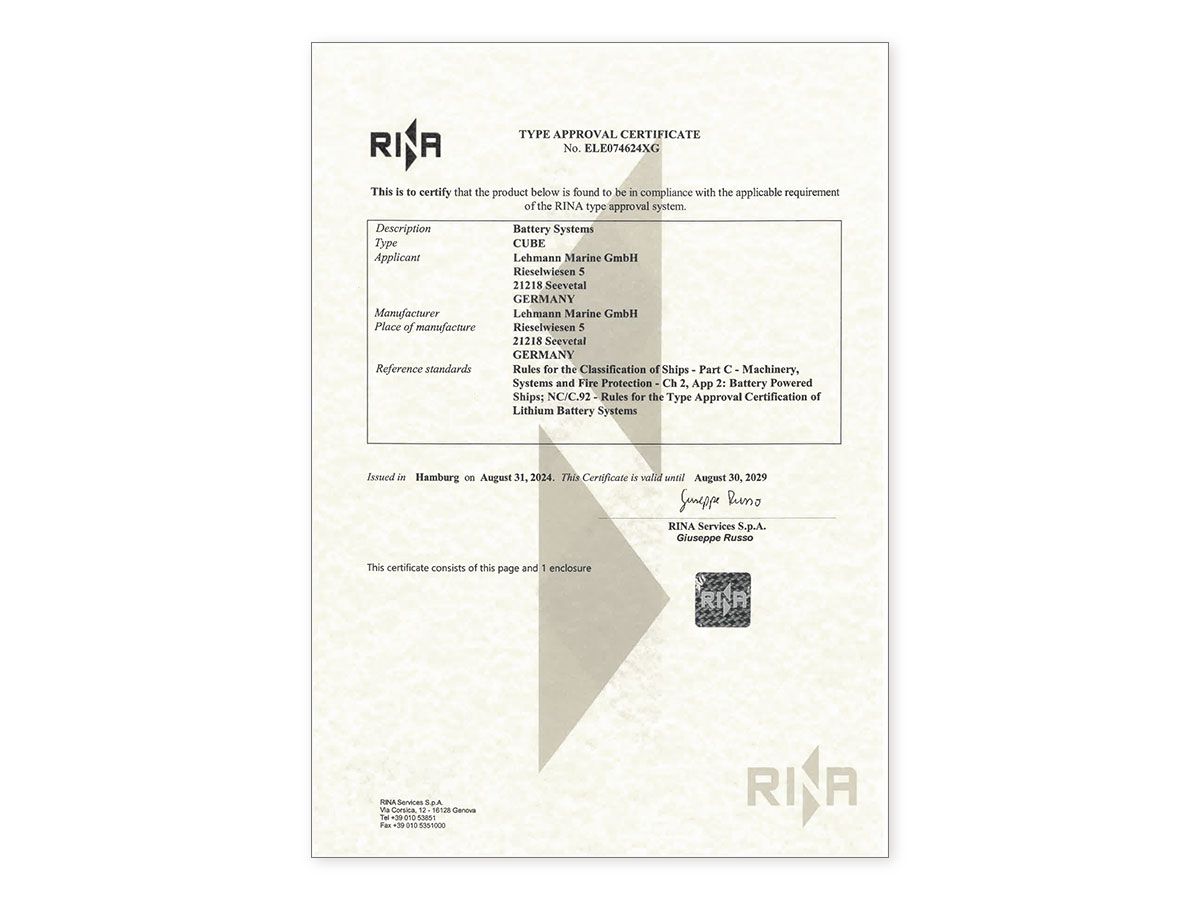

Type approvals CUBE
Offer Request Form
Are you interested in our battery systems? Feel free to download our interactive Offer Request Form (PDF) by clicking the button below. Please fill out the relevant information of your project as detailed as possible. We will get back to you with our offer as soon as possible.
